payload: payload.c
    ${CC} -ffreestanding -nostdinc -nostdlib -Wl,--oformat,binary -Wl,--no-dynamic-linker $< -o $@
    echo "generate payload" && xxd $@

.PHONY: disasm
    objdump -m i386 -b binary -D payload

-ffreestanding - 独立执行环境
-nostdinc - 不要标准库包含 (不懂)
-nostdlib - 不要标准库 (libc.so crtbegin crt0 这种（好像）)
-Wl,args args 是传递给链接器的参数，其中 , 代替空格
--oformat binary - 输出二进制文件
--no-dynamic-linker - 不要动态链接器 (.interp段内容)

于是乎我们只需要这么搞

#include <sys/mman.h>

void *mem = mmap(NULL, 1024 * 1024 * 2, PORT_READ | PORT_EXEC, MAP_ANON, -1, 0);
FILE *f = fopen("payload", "rb");
fread(mem, 64, 1, f);

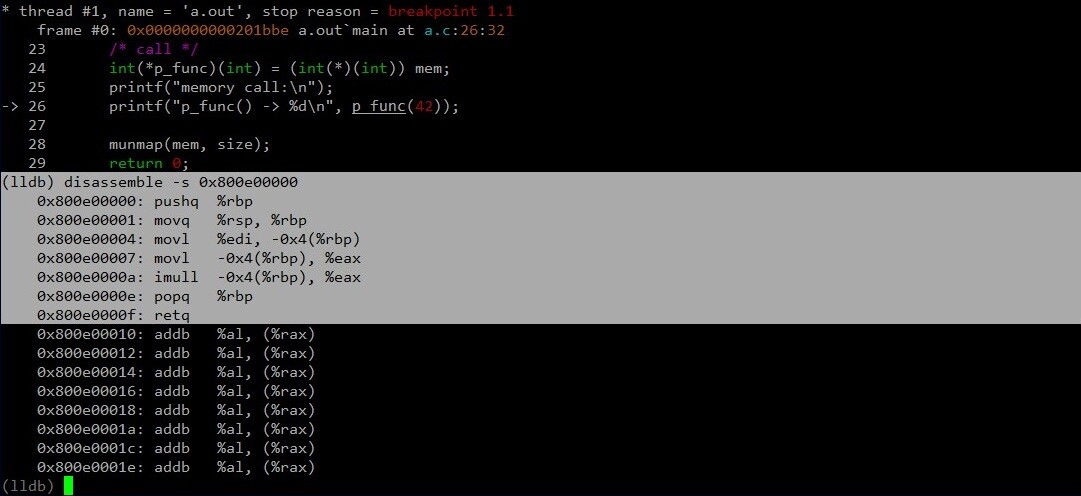

准备函数原型并且发起调用

int func(int);

printf("call -> %d\n", ((int(*)(int))mem)(42) );

引用

freestanding environment

In a freestanding environment, the name and type of the function called at program startup are implementation-defined. Any library facilities available to a freestanding program, other than the minimal set required by clause 4, are implementation-defined.

差不多就是不要求标准库的那种，独立于 c 语言库的一种执行环境。

**清蒸萌新literal** @[email protected] · Aug 21, 2021, 12:58

**清蒸萌新literal** @[email protected] · Aug 21, 2021, 12:58

Aug 21, 2021, 12:58

清蒸萌新literal @[email protected]

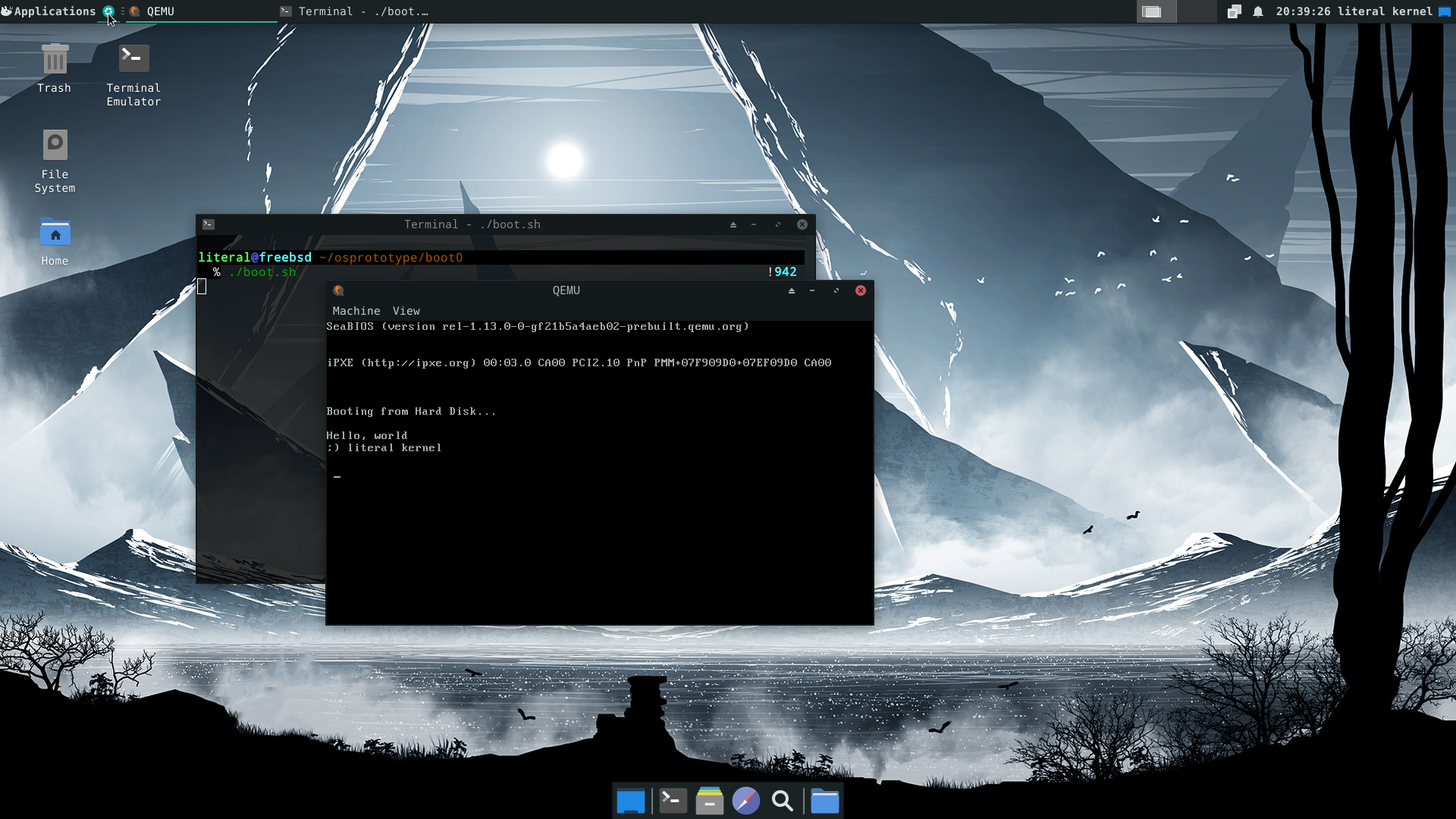

boot0.S

    .set ORIGIN, 0x600
    .set LOAD, 0x7c00

    .set MAGIC, 0xaa55
    .set PRT_OFF, 0x1be # Partition table
    .set B0_BASE, 0x1b2
    .set B0_OFF, (B0_BASE-0x200)

    .intel_syntax noprefix
    .globl start
    .code16

start: cld
    xor ax, ax
    mov es, ax
    mov ds, ax
    mov ss, ax
    mov sp, LOAD

    mov si, sp
    # https://stackoverflow.com/a/36899426
    mov di, offset start
    mov cx, 0x100
    rep
    movsw

    mov bp, di
    mov cl, 0x8
    rep
    stosw
    inc byte ptr -0xe[di]

    jmp [main-LOAD+ORIGIN]

main:
    mov si, offset message
    call putstr

    hlt

putstr.1: call putchr
putstr: lodsb
    test al, 0x80
    jz putstr.1
    and al, ~0x80

putchr:
    push bx
    mov bx, 0x7
    mov ah, 0xe
    int 0x10
    pop bx
    ret

message:
    .ascii "\nHello, world\r\n;) literal kernel"
crlf:
    .ascii "\r"
    .byte '\n' | 0x80
    .byte 0x80

    .org PRT_OFF
partbl:
    .fill 0x40, 0x1, 0x0 # Partition table
    .word MAGIC # Magic number
    .org 0x200
endblock:

boot.ldscript

OUTPUT_FORMAT("elf32-i386-freebsd")
OUTPUT_ARCH(i386)
ENTRY(_start)
SECTIONS {
  . = ORG;
  .text : { *(.text .text.*) } = 0xcccccccc
  .data : { *(.data .data.*) }
  _edata = .; PROVIDE (edata = .);
  .bss  : { *(.bss .bss.*)  }
  _end = .; PROVIDE (end = .);
  /DISCARD/ : { *(.interp) }
}

cc -m32 -march=i386 -nostdinc -nostdlib -ffreestanding -ffunction-section -fdata-section -mno-mmx -mno-sse -mno-avx -mno-avx2 -msoft-float -c boot.S -o boot0.o
ld --eh-frame-hdr -m elf_i386 -T boot.ldscript -N -S --oformat binary --no-resegment boot0.o -o boot0
